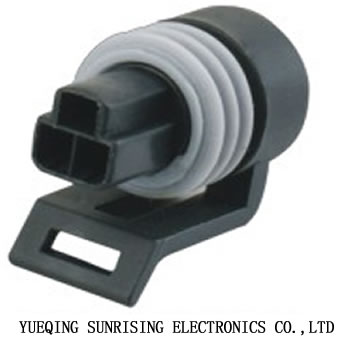

- connector assembly DJH7032Y-1.5-21
Release time : 2011-3-9 9:59:19
   |
Pdf View
Word View |
Description |  |
connector assembly DJH7032Y-1.5-21
Product Number 12110192 , 12065287
Description 3 Way Black Metri-Pack 150 Sealed Female Connector Assembly, Max Current 14 amps
Connector Family Metri-Pack
Connector Series 150
Product Type Connector
Color Black
Material Description Nylon
Cavities 3
Gender Female
Sealable Sealed
Maximum Current Range in AMPS 11-15
Temperature Range Celsius -40 to 125
Resistance in mOhms at 20 mV Less than 10.0
Voltage Drop in mV per amp Less than 6.0
Terminal Blade Width mm 1.5
Part Weight 3.30915 g
Exterior Dimensions 24.6L X 15.8W X 21H
Terminal Primary Lock Ramp
Status Active, On Restricted Usage
Usable Cavities 3
Mates With Device Connection
Remarks replace with gt connector when applicable
Seating Process Pull To Seat
Product Number 12110192 , 12065287
Description 3 Way Black Metri-Pack 150 Sealed Female Connector Assembly, Max Current 14 amps
Connector Family Metri-Pack
Connector Series 150
Product Type Connector
Color Black
Material Description Nylon
Cavities 3
Gender Female
Sealable Sealed
Maximum Current Range in AMPS 11-15
Temperature Range Celsius -40 to 125
Resistance in mOhms at 20 mV Less than 10.0
Voltage Drop in mV per amp Less than 6.0
Terminal Blade Width mm 1.5
Part Weight 3.30915 g
Exterior Dimensions 24.6L X 15.8W X 21H
Terminal Primary Lock Ramp
Status Active, On Restricted Usage
Usable Cavities 3
Mates With Device Connection
Remarks replace with gt connector when applicable
Seating Process Pull To Seat
