- connector assembly for H9 bulb DJ7042Y-1.5-21
Release time : 2011-3-9 10:02:28
   |
Pdf View
Word View |
Description |  |

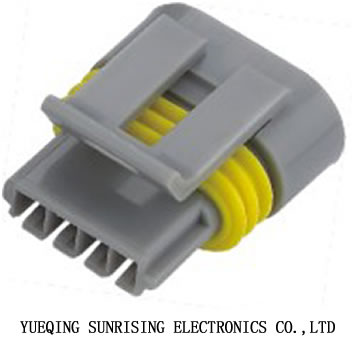

connector assembly for H9 bulb DJ7042Y-1.5-21
Product Number 12162834
Description 4 Way Gray Metri-Pack 150.2 Sealed Female Connector Assembly
Connector Family Metri-Pack
Connector Series 150.2
Product Type Connector
Color Gray
Material Description Nylon
Cavities 4
Gender Female
Sealable Sealed
Temperature Range Celsius -40 to 125
Resistance in mOhms at 20 mV Less than 10.0
Voltage Drop in mV per amp Less than 6.0
Terminal Blade Width mm 1.5
Part Weight 4.83628 g
Exterior Dimensions 27.1L X 23W X 17.9H
Terminal Primary Lock Ramp
Connector Primary Lock Inertia
Status Active, On Restricted Usage
Usable Cavities 4
Mates With Device Connection
Remarks replace with gt connector when applicable
Seating Process Pull To Seat
Product Number 12162834
Description 4 Way Gray Metri-Pack 150.2 Sealed Female Connector Assembly
Connector Family Metri-Pack
Connector Series 150.2
Product Type Connector
Color Gray
Material Description Nylon
Cavities 4
Gender Female
Sealable Sealed
Temperature Range Celsius -40 to 125
Resistance in mOhms at 20 mV Less than 10.0
Voltage Drop in mV per amp Less than 6.0
Terminal Blade Width mm 1.5
Part Weight 4.83628 g
Exterior Dimensions 27.1L X 23W X 17.9H
Terminal Primary Lock Ramp
Connector Primary Lock Inertia
Status Active, On Restricted Usage
Usable Cavities 4
Mates With Device Connection
Remarks replace with gt connector when applicable
Seating Process Pull To Seat
