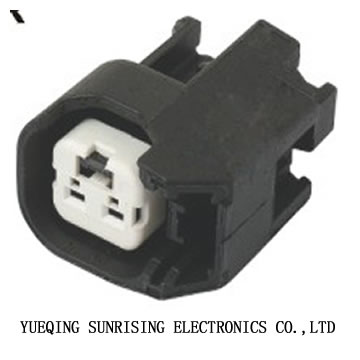

- cable connector DJ7026A-2.2-21
Release time : 2011-3-9 12:53:11
   |
Pdf View
Word View |
Description |  |
cable connector DJ7026A-2.2-21
Product Number 15419715
Description 2 Way Gray GT 150 Sealed Female Connector Assembly, Max Current 15 amps
Connector Family GT
Connector Series 150
Product Type Connector
Color Gray
Material Description PBT
Cavities 2
Gender Female
Sealable Sealed
Maximum Current Range in AMPS 11-15
Temperature Range Celsius -40 to 125
Resistance in mOhms at 20 mV Less than 10.0
Voltage Drop in mV per amp Less than 10.0
Terminal Blade Width mm 1.5
Part Weight 6.46555 g
Terminal Primary Lock Flex Arm
Terminal Secondary Lock TPA
Connector Primary Lock Positive
Connector Secondary Lock CPA Axial
Status Active
Usable Cavities 2
ELV Compliant Yes
3D IGES Model Available Yes
Product Number 15419715
Description 2 Way Gray GT 150 Sealed Female Connector Assembly, Max Current 15 amps
Connector Family GT
Connector Series 150
Product Type Connector
Color Gray
Material Description PBT
Cavities 2
Gender Female
Sealable Sealed
Maximum Current Range in AMPS 11-15
Temperature Range Celsius -40 to 125
Resistance in mOhms at 20 mV Less than 10.0
Voltage Drop in mV per amp Less than 10.0
Terminal Blade Width mm 1.5
Part Weight 6.46555 g
Terminal Primary Lock Flex Arm
Terminal Secondary Lock TPA
Connector Primary Lock Positive
Connector Secondary Lock CPA Axial
Status Active
Usable Cavities 2
ELV Compliant Yes
3D IGES Model Available Yes
