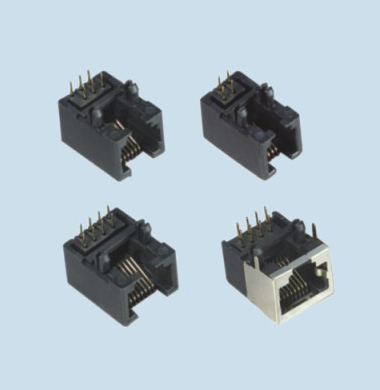

- CONNECTOR ZP53A
Release time : 2014-3-6 13:19:27
   |
Word View |
Description |  |
material
1.HOUSING MATERIAL :GLASS FILLED PLYESTER UL94-0
PBT,NYLON
2.HOUSING COLOR :BLACK OR OTHERS
3.CONTACT MATERIAL :PHOSPHOR BRONZE φ0.46mm
4.PLATING : GOLD PLATING OVER NICKEL.GOLD PLATING
THICKNESS 1.5u
ELECTRICAL
1.VOLTAGE RATING : 125 VAC RMS.
2.CURRENT RATING : 1.5AMP.
3.CONTACT RESISTANCE : 30 MILLINHMS MAX.
4.INSULATION RESISTANCE : 500 MEGOHMS MIN @500 VDC
5.DIELECTRIC WITHSTANDING RESISTANCE : 1000 VAC RMS.
50Hz 1MINUTE
MECHANICAL
1.DURABILITY : 750 CYCLES MIN
2.PCB RETENTION PRE-SOLDER : 1 LB MIN
ENVIRONMENTAL
1.STORAGE : -40°C~80°C
2.OPERATION : 0°C~70°C
