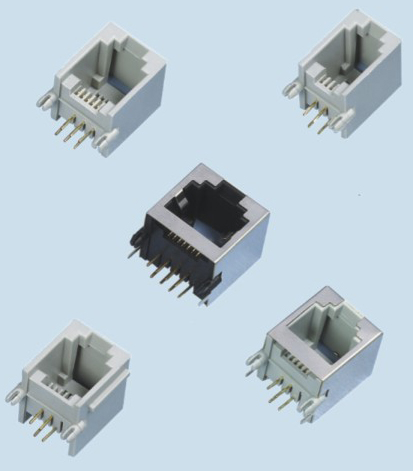

- CONNECTOR ZP55A
Release time : 2014-3-11 9:10:47
   |
Word View |
Description |  |
MATERIAL
1.HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0
ABS,PBT,NYLON
2.HOUSING COLOR :BLACK,GRAY,IVORY,WHITE OR OTHERS
3.CONTACT MATERIAL : PHOSPHOR BRONZE φ0.46mm
4.PLATING : GOLD PLATING OVER NICKEL.GOLD PLATING THICKNESS
1.5u"/3u"/6u"/15u"/30u"/50u"
5.SHIELD :0.23 THICKNESS BRASS WITH NICKEL PLATED
SPECIFICTIONS
ELECTRICAL
1.VOLTAGE RATING :125 VAC RMS.
2.CURRENT RATING :1.5AMP.
3.CONTACT RESISTANCE :30 MILLINHMS MAX.
4.INSULATION RESISTANCE :500 MEGOHMS MIN @500 VDC
5.DIELECTRIC WITHSTANDING RESISTANCE :1000 VAC RMS.
50Hz 1MINUTE
MECHANICAL
1.DURABILITY :750 CYCLES MIN
2.PCB RETENTION PRE-SOLDER :1 LB MIN
ENVIRONMENTAL
1.STORAGE : - 40°C~80°C
2.OPERATION : 0°C~70°C
1.HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0
ABS,PBT,NYLON
2.HOUSING COLOR :BLACK,GRAY,IVORY,WHITE OR OTHERS
3.CONTACT MATERIAL : PHOSPHOR BRONZE φ0.46mm
4.PLATING : GOLD PLATING OVER NICKEL.GOLD PLATING THICKNESS
1.5u"/3u"/6u"/15u"/30u"/50u"
5.SHIELD :0.23 THICKNESS BRASS WITH NICKEL PLATED
SPECIFICTIONS
ELECTRICAL
1.VOLTAGE RATING :125 VAC RMS.
2.CURRENT RATING :1.5AMP.
3.CONTACT RESISTANCE :30 MILLINHMS MAX.
4.INSULATION RESISTANCE :500 MEGOHMS MIN @500 VDC
5.DIELECTRIC WITHSTANDING RESISTANCE :1000 VAC RMS.
50Hz 1MINUTE
MECHANICAL
1.DURABILITY :750 CYCLES MIN
2.PCB RETENTION PRE-SOLDER :1 LB MIN
ENVIRONMENTAL
1.STORAGE : - 40°C~80°C
2.OPERATION : 0°C~70°C
