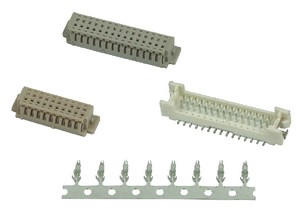

- DF13-1.25mm
Release time : 2008-2-27 9:14:39
   |
Word View |
Description |  |
Specifications
Pitch 1.25mm
Poles 1040
Useable wire range AWG32#28#
Applicable PC board thickness 0.61.2mm
Current rating 1A,AC,DC
Voltage rating 250V AC,DC
Working Temperature -25+85
Relative humidity 93%+40
Withstand voltage 500V/min
Contact resistance 0.01
Insulation resistance 500m
Material
Housing NYlon66 UL94V-0
Pin header
1.Water NYlon46 UL94V-0
2.Pin Phosphor Bronze
3.Terminal Phosphor Bronze
Pitch 1.25mm
Poles 1040
Useable wire range AWG32#28#
Applicable PC board thickness 0.61.2mm
Current rating 1A,AC,DC
Voltage rating 250V AC,DC
Working Temperature -25+85
Relative humidity 93%+40
Withstand voltage 500V/min
Contact resistance 0.01
Insulation resistance 500m
Material
Housing NYlon66 UL94V-0
Pin header
1.Water NYlon46 UL94V-0
2.Pin Phosphor Bronze
3.Terminal Phosphor Bronze
