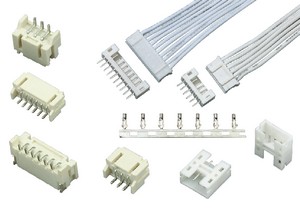

- PH-2.0mm
Release time : 2008-2-27 9:18:16
   |
Word View |
Description |  |
Specifications
Pitch 2.0mm
Poles 2-16
Useable wire range AWG30#26#
Applicable PC board thickness 0.8mm
Current rating 1A,AC,DC
Voltage rating 100V AC,DC
Working Temperature -25+85
Relative humidity 94%+40
Withstand voltage 800V/min
Contact resistance 0.01
Insulation resistance 500m
Material
Housing NYlon66 UL94V-0
Pin header
1.Water NYlon6646 UL94V-0
2.Pin Brass
3.Terminal Phosphor Bronze
Pitch 2.0mm
Poles 2-16
Useable wire range AWG30#26#
Applicable PC board thickness 0.8mm
Current rating 1A,AC,DC
Voltage rating 100V AC,DC
Working Temperature -25+85
Relative humidity 94%+40
Withstand voltage 800V/min
Contact resistance 0.01
Insulation resistance 500m
Material
Housing NYlon66 UL94V-0
Pin header
1.Water NYlon6646 UL94V-0
2.Pin Brass
3.Terminal Phosphor Bronze
