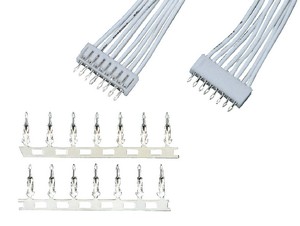

- SAN-2.0mm
Release time : 2008-2-27 9:21:51
   |
Word View |
Description |  |
Specifications
Pitch 2.0mm
Poles 2-16
Useable wire range AWG30#24#
Applicable PC board thickness 1.21.6mm
Current rating 2A,AC,DC
Voltage rating 250V AC,DC
Working Temperature -25+85
Withstand voltage 800V/min
Contact resistance 0.01
Insulation resistance 1000m
Material
Housing NYlon66 UL94V-0
Terminal Phosphor Bronze
Pitch 2.0mm
Poles 2-16
Useable wire range AWG30#24#
Applicable PC board thickness 1.21.6mm
Current rating 2A,AC,DC
Voltage rating 250V AC,DC
Working Temperature -25+85
Withstand voltage 800V/min
Contact resistance 0.01
Insulation resistance 1000m
Material
Housing NYlon66 UL94V-0
Terminal Phosphor Bronze
