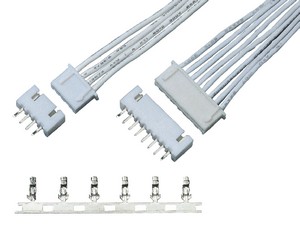

- XH (TJC3)-2.5mm
Release time : 2008-2-27 9:33:29
   |
Word View |
Description |  |
Specifications
Pitch 2.5mm
Poles 220
Useable wire range AWG30#22#
Applicable PC board thickness 1.6mm
Current rating 3A,AC,DC
Voltage rating 250V AC,DC
Working Temperature -25+85
Withstand voltage 1000V/min
Contact resistance 0.01
Insulation resistance 1000m
Material
Housing NYlon66 UL94V-0
Pin header
1.Water NYlon66 UL94V-0
2.Pin Brass
3.Terminal Phosphor Bronze
Pitch 2.5mm
Poles 220
Useable wire range AWG30#22#
Applicable PC board thickness 1.6mm
Current rating 3A,AC,DC
Voltage rating 250V AC,DC
Working Temperature -25+85
Withstand voltage 1000V/min
Contact resistance 0.01
Insulation resistance 1000m
Material
Housing NYlon66 UL94V-0
Pin header
1.Water NYlon66 UL94V-0
2.Pin Brass
3.Terminal Phosphor Bronze
