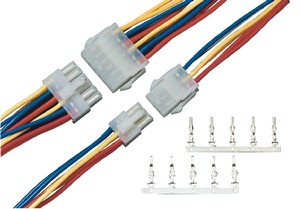

- 5557-5559-4.2mm Release time : 2008-2-27 11:36:15 Large View Pdf View Word View

Description

Specifications
 Pitch  4.2mm
 Poles  224
 Useable wire range  AWG24#18#
 Applicable PC board thickness  1.6mm
 Current rating  7A,AC,DC
 Voltage rating  250V AC,DC
 Working Temperature  -25+85
 Withstand voltage  1500V/min
 Contact resistance  0.01
 Insulation resistance  1000m
 Material
 Housing  NYlon66 UL94V-0
 Pin header
 1.Water  NYlon66 UL94V-0
 2.Pin  Brass
 3.Terminal  Phosphor Bronze
