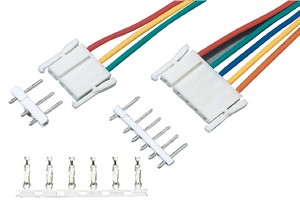

- TJC2A-7.5-5mm Release time : 2008-2-27 11:44:50 Large View Pdf View Word View

Description

Specifications
 Pitch  7.5-5.0-5.0....5.0mm
 Poles  26
 Useable wire range  AWG26#20#
 Applicable PC board thickness  1.6mm
 Current rating  5A,AC,DC
 Voltage rating  250V AC,DC
 Working Temperature  -25+85
 Withstand voltage  1500V/min
 Contact resistance  0.01
 Insulation resistance  1000m
 Material
 Housing  NYlon66 UL94V-0
 Pin header
 1.Water  PBT UL94V-0
 2.Pin  Brass
 3.Terminal  Phosphor Bronze
