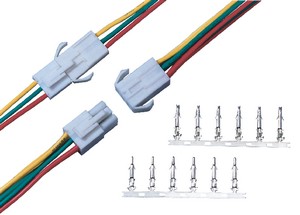

- EL-4.5mm Release time : 2008-2-27 11:41:03 Large View Pdf View Word View

Description

Specifications
 Pitch  4.5mm
 Poles  215
 Useable wire range  AWG26#16#
 Current rating  10A,AC,DC
 Voltage rating  300V
 Working Temperature  -25+85
 Withstand voltage  1500V/min
 Contact resistance  0.01
 Insulation resistance  1000m
 Material
 Housing  NYlon66 UL94V-0
 Terminal  Phosphor Bronze
